Enhance your Raspberry Pi projects with our RPi Screw Terminal Block Breakout Module, complete with a sleek aluminum enclosure. Designed to seamlessly integrate Raspberry Pi models (1 Model B+, Pi 2 Model B, Pi 3 Model B, and Pi 3 Model B+), this module effortlessly extends your projects to industrial control applications. Please note, the Raspberry Pi itself is not included.
With a 3.5mm terminal block pitch and support for wire sizes ranging from 26AWG to 16AWG, our module ensures a reliable connection. It features a standard IDC40 0.1" pitch header for easy connectivity through a 40-pin FRC flat ribbon cable, allowing you to link all Raspberry Pi pins to peripheral equipment effortlessly.

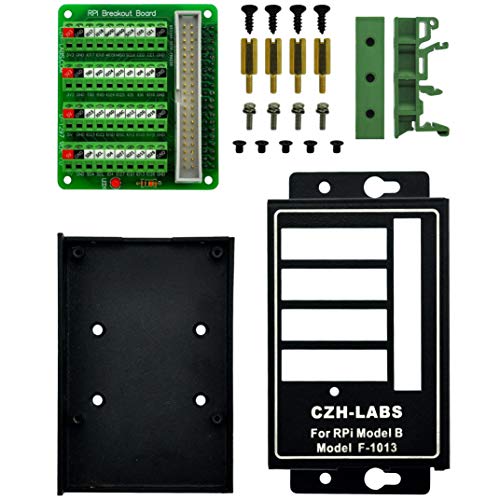

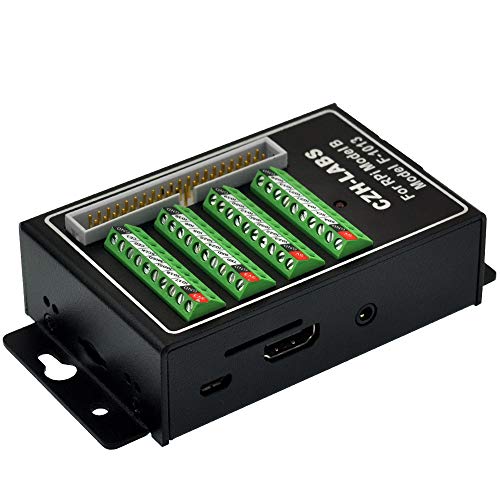

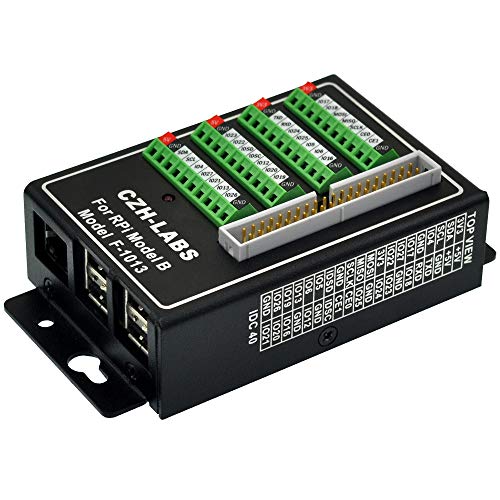

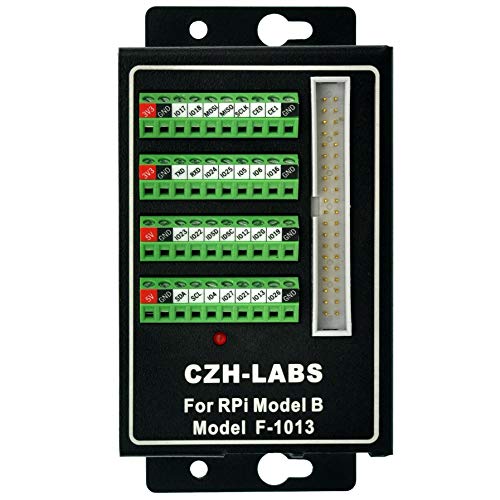

Versatility is key with support for desktop, panel mount, wall-mount, or DIN rail mount configurations – all capable of vertical or horizontal placement. Encased in a high-quality, durable aluminum shell with clear laser-marked labels, this module promises both aesthetic appeal and robust functionality. The package includes everything you need: a Terminal Block Board, aluminum enclosure covers, DIN rail adapter brackets, brass standoffs, and screws. Upgrade your setup today with our reliable and well-crafted module!
Discover how the RPi Screw Terminal Block Breakout Module with Aluminum Enclosure can elevate your Raspberry Pi projects to industrial standards. This versatile module is compatible with Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, and Pi 3 Model B+ (note: Raspberry Pi is not included).
Features:
Material: Constructed with a high-quality aluminum enclosure (1.5mm thickness) for durability, the enclosure features powder coat painting and clear laser marking labels. The PCB is made from FR-4 fiberglass and dual copper layers for enhanced reliability.
Terminal Block: The terminal block pitch is 3.5mm (0.138"), supporting wire sizes from 26AWG to 16AWG with a strip length of 5mm. It uses M2 steel screws and copper pin headers for secure connections.
Mounting Options: Flexible mounting options include desktop, panel mount, wall-mount, and DIN rail mount, which supports both vertical and horizontal placement.
Connectivity: Features a standard IDC40 pitch 0.1" header, allowing you to use a 40-pin FRC (flat ribbon cable) connector to link all Raspberry Pi pins to peripheral equipment effortlessly.
Complete Kit: Comes with all the necessary components, including the terminal block board, aluminum enclosure, DIN rail adapter bracket, brass standoffs, flat head screws, and pan head screws for easy assembly.
Elevate your project’s performance and reliability with this versatile breakout module, making industrial control applications accessible and straightforward.
Customer Insights
The case and module are robust and built to last.
Simplifies the process of connecting and disconnecting sensors and other devices.
Includes built-in risers and a series of screws for secure mounting.
Labeled terminals and header pins are easily accessible and clearly marked for easy identification.
Supports ribbon cable connections and provides slots for external display and camera ribbon cables.
Extra 3.3v, 5v, and ground terminals; includes DIN rail mounts.
Metal construction helps with heat dissipation compared to plastic cases.
Some users feel the product is expensive.
Case does not accommodate a fan, making heat sinks necessary for certain models like RPi4.
The terminals are small, which might be challenging to handle for some users.
Assembling and disassembling the case can be time-consuming due to numerous screws.
Lacks rubber feet for bench-top use.
Removing the SD card requires needle nose pliers due to tight fit.
Would benefit from using the case as part of the heat sink system.
